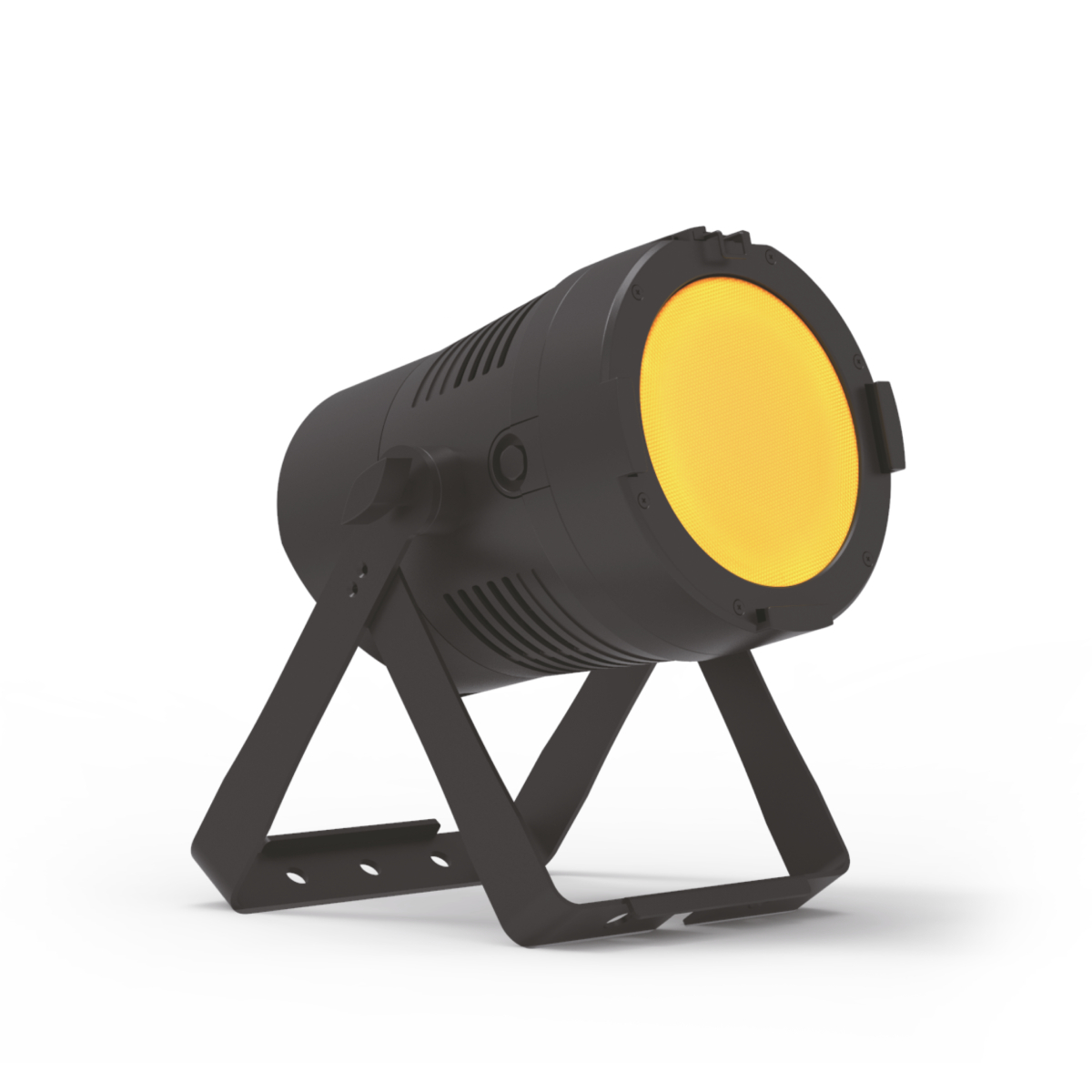

PYXIS AURORA ZOOM-IP66

Versatile RGBL parcan wash light with advanced color mixing and CCS technology, ideal for studios, theatrical productions, and outdoor events.

Description

The PYXIS AURORA ZOOM-IP66 is a professional-grade wash light designed for theatrical and TV studio applications. Featuring a 200W RGBL light source, this fixture delivers stunning color accuracy and abundant mixing effects. Engineered with LBT’s Color Consistency System (CCS), it achieves CRI levels above 85Ra, ensuring lifelike color rendering. With a zoomable beam angle from 15° to 45°, waterproof IP66-rated housing, and multi-mode personality settings, it offers powerful performance indoors and out.

Key Features:

  • 200W RGBL single-facet light source
  • Luminous flux: 9600lm
  • Zoomable beam angle: 15°–45°
  • CCS color consistency tech, CRI >85Ra
  • Custom personality modes: BASIC, SSP, TOUR, TR16, HSIC, CMY
  • Onboard control with display and custom mode settings
  • Forced convection cooling for durability
  • DMX512, RDM & NFC control compatibility
  • Flicker-free operation with 0–25Hz strobe
Specifications
Feature Specification
Light Source 200W RGBL
Beam Angle Range 15°–45°
Luminous Flux 9600lm
Illuminance 2000lx @5m (15°)
IP Rating IP66
Voltage 100–240VAC, 50/60Hz
Max Power 200W
Weight 5.4 kg
Dimensions 401 × 294 × 209 mm
Casing Material Magnalium & Die-cast
Color Black
Control Protocols DMX512, RDM, NFC
Cooling Forced Convection
Certifications CE, MET
Operating Temp -20°C to +45°C

Accessories: (Sold separately unless specified)

  • Barn doors (6813100039)
  • Diffuser plate (2440010905)
