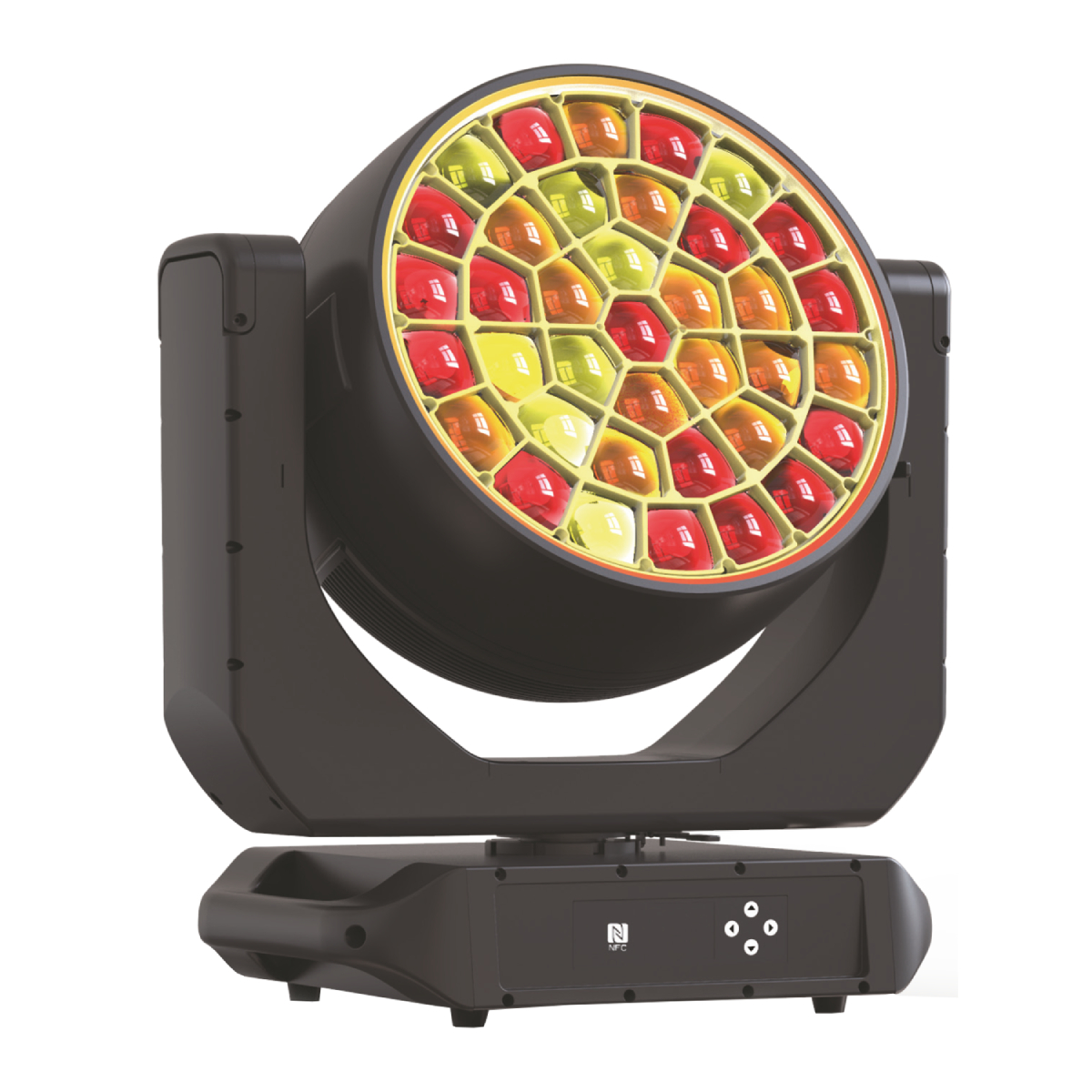

ORBITER WASH XL-37x50W-IP66
Premium-grade waterproof RGBL LED wash light with pixel effects, auto color calibration, and a beam angle from 3.5°–60°. Built for concerts, events, and touring shows.
Description
The ORBITER WASH XL-37x50W-IP66 is a powerhouse moving wash fixture engineered for professional stage environments. With 37×50W RGBL LEDs, dynamic masks, and LED ring effects, this luminaire creates stunning visuals and vibrant atmospheres.
The integrated HSIC intelligent color mixing system enables seamless modulation across 1800K–10000K, while LBT’s CCS intelligent auto-color calibration ensures consistent performance across units.
Designed with infinite Pan/Tilt motion, 174-channel pixel control, and IP66-rated casing, it’s the ideal choice for outdoor concerts, touring productions, and rental fleets.
Key Features:
- 37×50W RGBL LEDs + LED ring + double mask effect
- Pixel control with up to 174 channels for complex effects
- Beam angle range: 3.5°–60°, luminous flux of 24,000lm
- CCS smart color calibration system for consistency
- Multiple control protocols: DMX512, RDM, ARTNET, SACN, BT, NFC, W-DMX
- Multiple personalities: HSIC, SSP, TOUR, TR16, CMY, PIXEL
- IP66-rated die-cast magnalium housing, perfect for outdoor use
- Display interface with USB-C & RJ45 support
- Pan/Tilt: Infinite Pan / 270° Tilt, 8–16bit resolution
- Certified to CE standards
Specifications
| Feature | Details |
|---|---|
| Light Source | 37 × 50W RGBL LEDs + LED Ring + Mask |
| Beam Angle Range | 3.5°–60° |
| Luminous Flux | 24,000 lm |
| Illuminance @5m | 120,000 lux (3.5° beam angle) |
| Weight | 36 kg |
| Dimensions (mm) | 644 × 572 × 368 |
| Casing Material | Magnalium + Die-cast |
| Color | Black |
| Voltage | 100–240VAC, 50/60Hz |
| Max Power | 1800W |
| Cooling | Forced Convection |
| Control Protocols | DMX512, RDM, ARTNET, SACN, BT, NFC, W-DMX |
| Pan/Tilt Movement | Infinite Pan / 270° Tilt (8–16bit) |
| Dimming | 0–100%, 24-bit |
| Operating Temp Range | -20°C to +45°C |
| IP Rating | IP66 |
| Certifications | CE |
