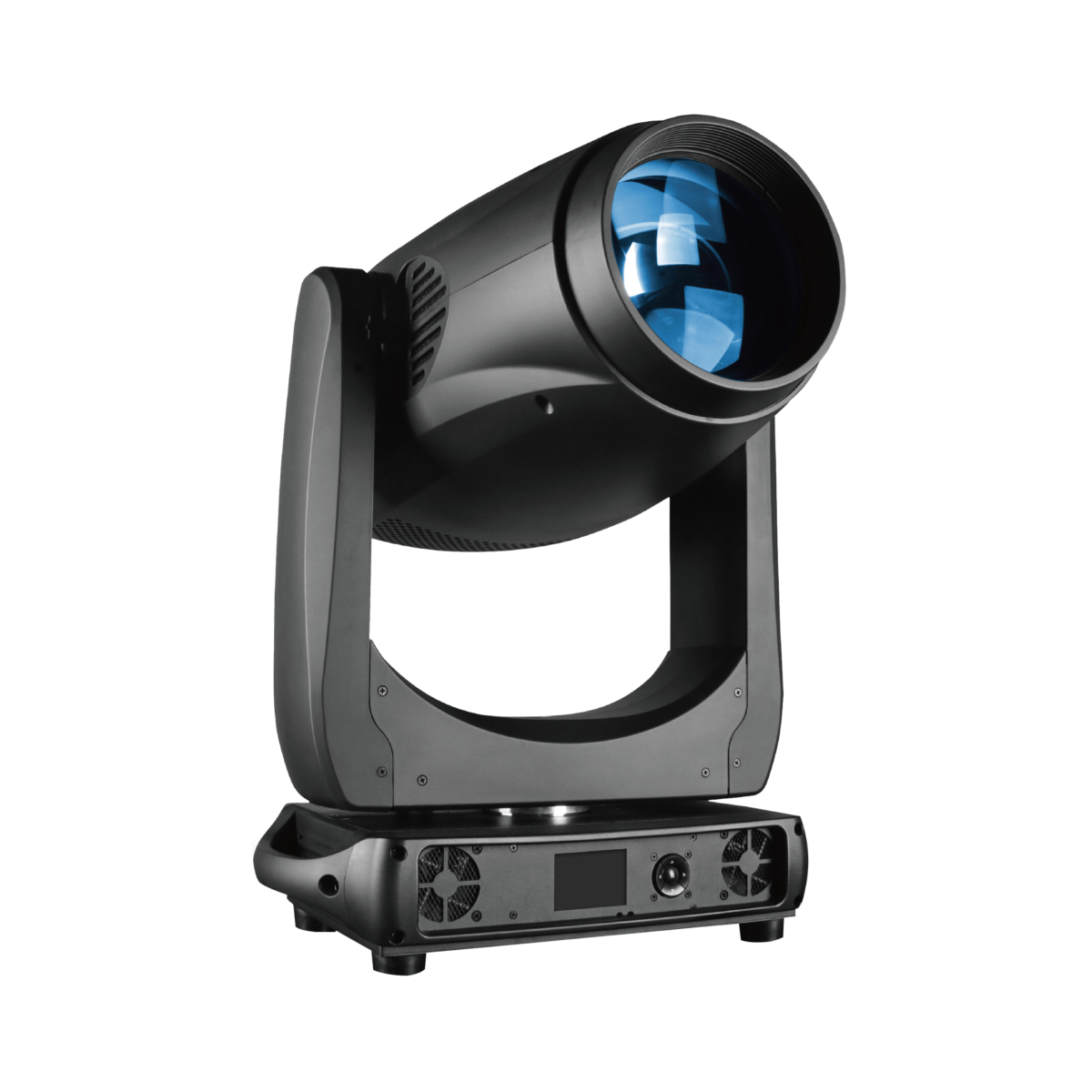

ORBITER LED-BSWF PRO 1600S
1600W LED-powered theatrical fixture with CMY+CTO color mixing, dual prisms, animation effects, and precision framing. Ideal for high-end venues, rental setups, and stage environments.
Description
Engineered by LBT Lumen Bright Technology, the ORBITER LED-BSWF PRO 1600S is a cutting-edge moving head designed for immersive lighting experiences. With a powerful 1600W LED source and advanced optical system, it delivers rich visuals and precise control for theater, cultural halls, and multi-purpose venues. The fixture includes dual rotating gobo wheels, animation effects, custom framing, and smooth pan/tilt motion. Dimmer precision and dual frost filters offer the versatility required for both spotlight and wash applications.
Key Features:
- 1600W LED with 23,000lm luminous flux
- CMY+CTO color mixing with CRI Ra 95 / R9 90

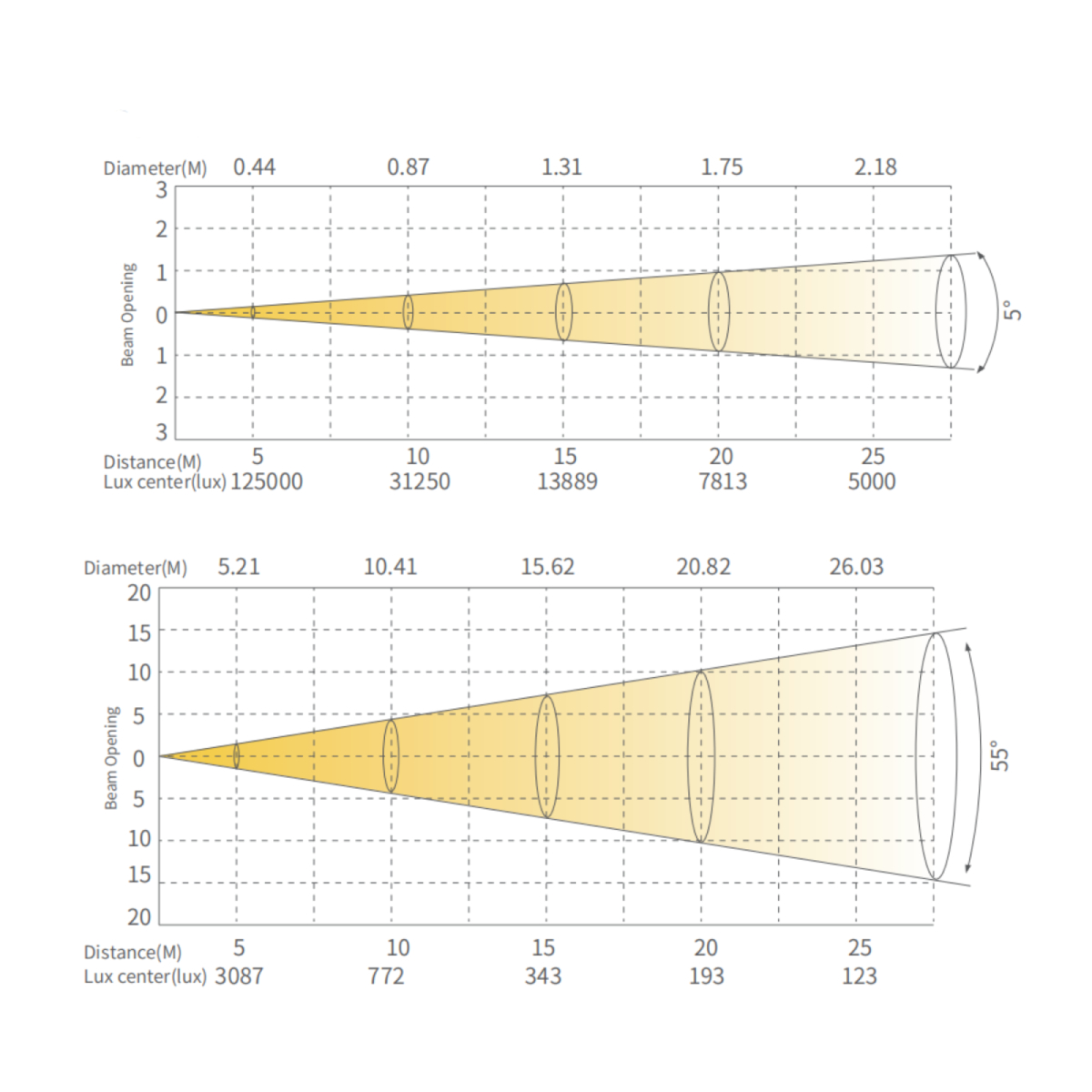

- Zoom angle range: 5°–55°
- Animation wheel, 7 rotating gobos, 8+1 static gobos
- Dual prisms: 4-facet and 5 linear, bi-directional rotation
- Precision framing system: 4 blades, ±90° module rotation
- Iris control: 5–100% linear aperture with macros
- Light + heavy frost filters
- DMX512, RDM, W-DMX control options
- Display board with multiple tunnel modes: BASIC, STANDARD, EXTENDED
- Flame-retardant casing; engineered for performance and safety
Specifications
| Feature | Specification |
|---|---|
| Light Source | 1600W LED |
| Luminous Flux | 23,000 lm |
| Zoom Angle | 5°–55° |
| Pan/Tilt Rotation | 540° / 270° (8–16bit) |
| Dimming | 0–100% Opera dimming (16bit) |
| Control Protocols | DMX512, RDM, W-DMX |
| Effects | Animation, Gobos, Iris, Prisms, Frost |
| Framing System | 4-blade cutting, ±90° rotation |
| Certifications | CE |
| Voltage | 100–240VAC, 50/60Hz |
| Max Power | 1800W |
| Cooling | Forced Air |
| IP Rating | IP20 |

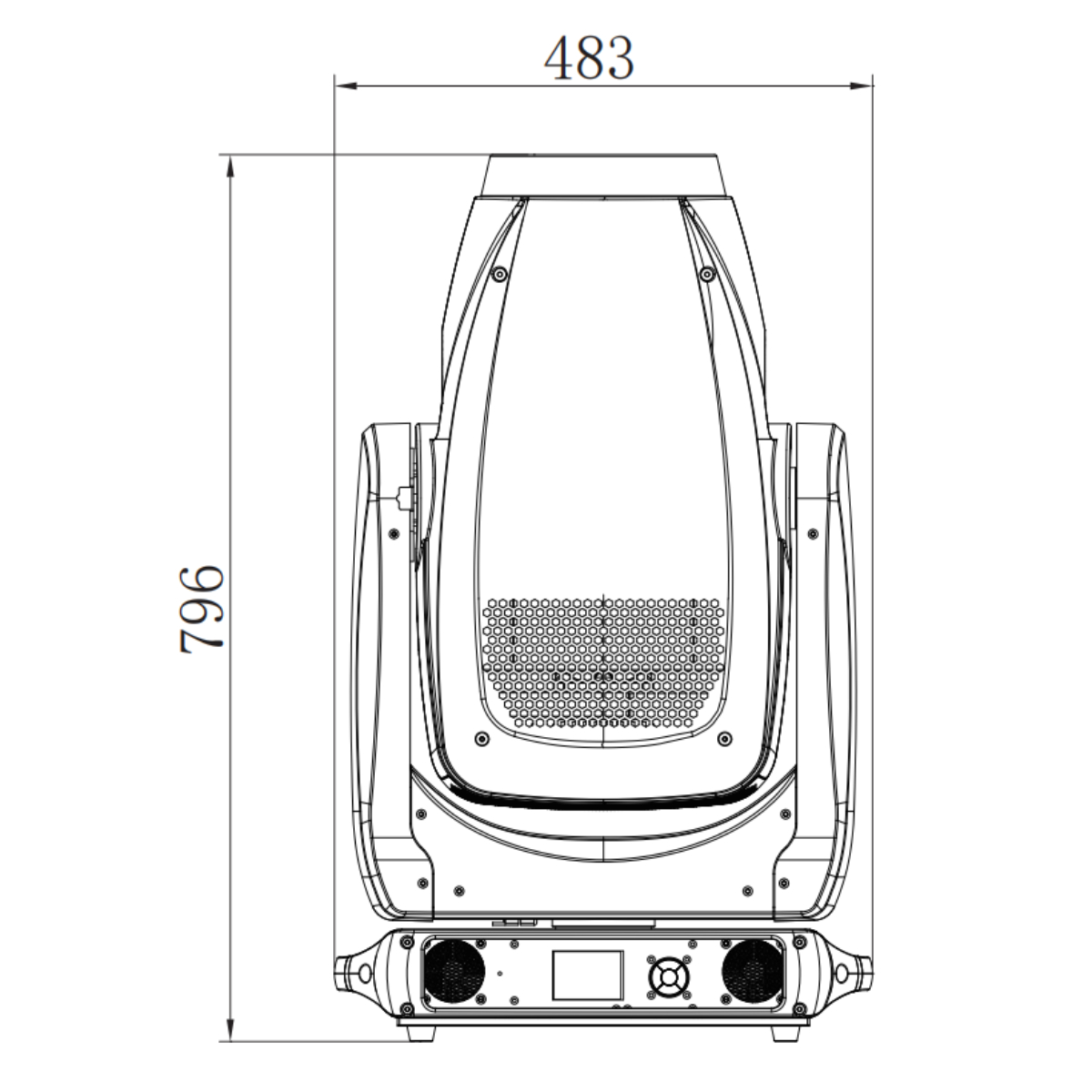

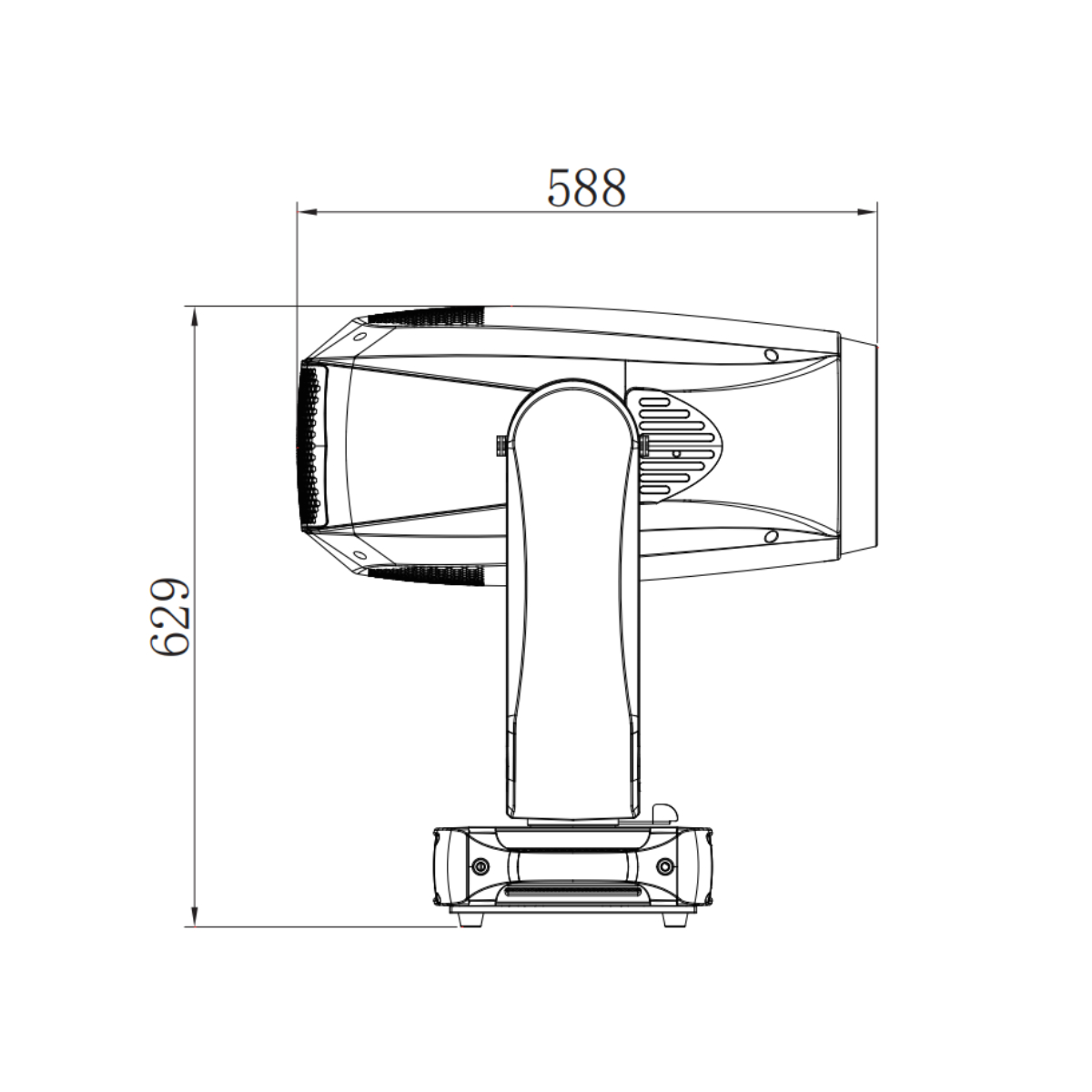

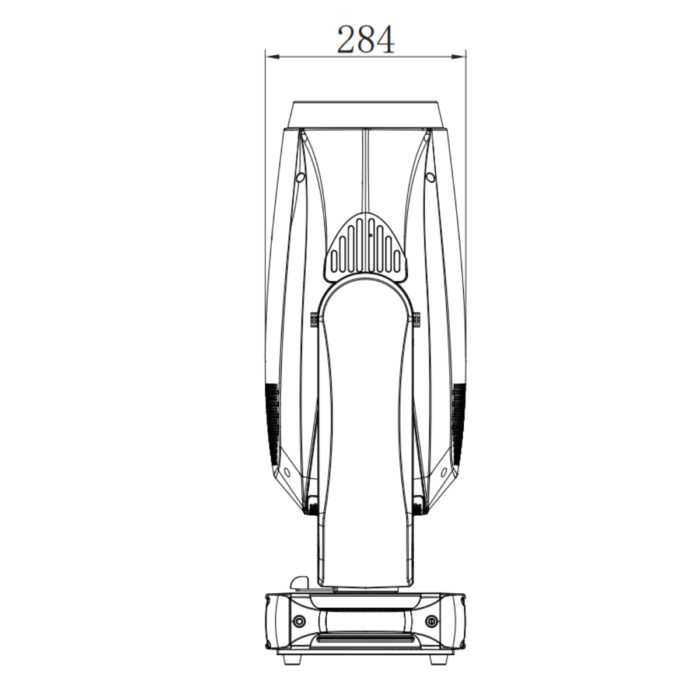

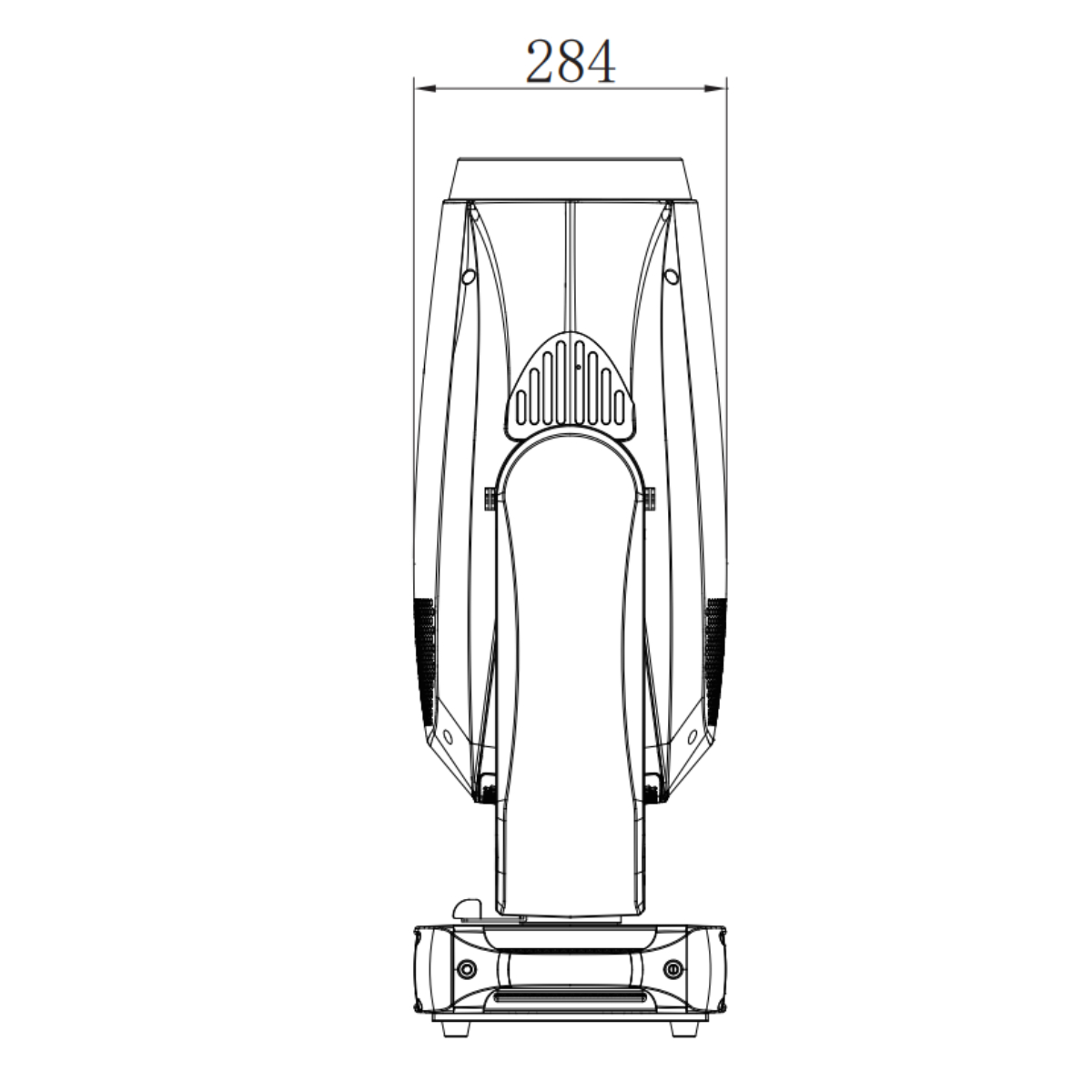

| Dimensions (L×W×H) | 483 × 284 × 796 mm |
| Weight | 45.5 kg |
| Casing Material | Flame-retardant engineering plastic |
| Operating Temp | 0°C to 45°C |
