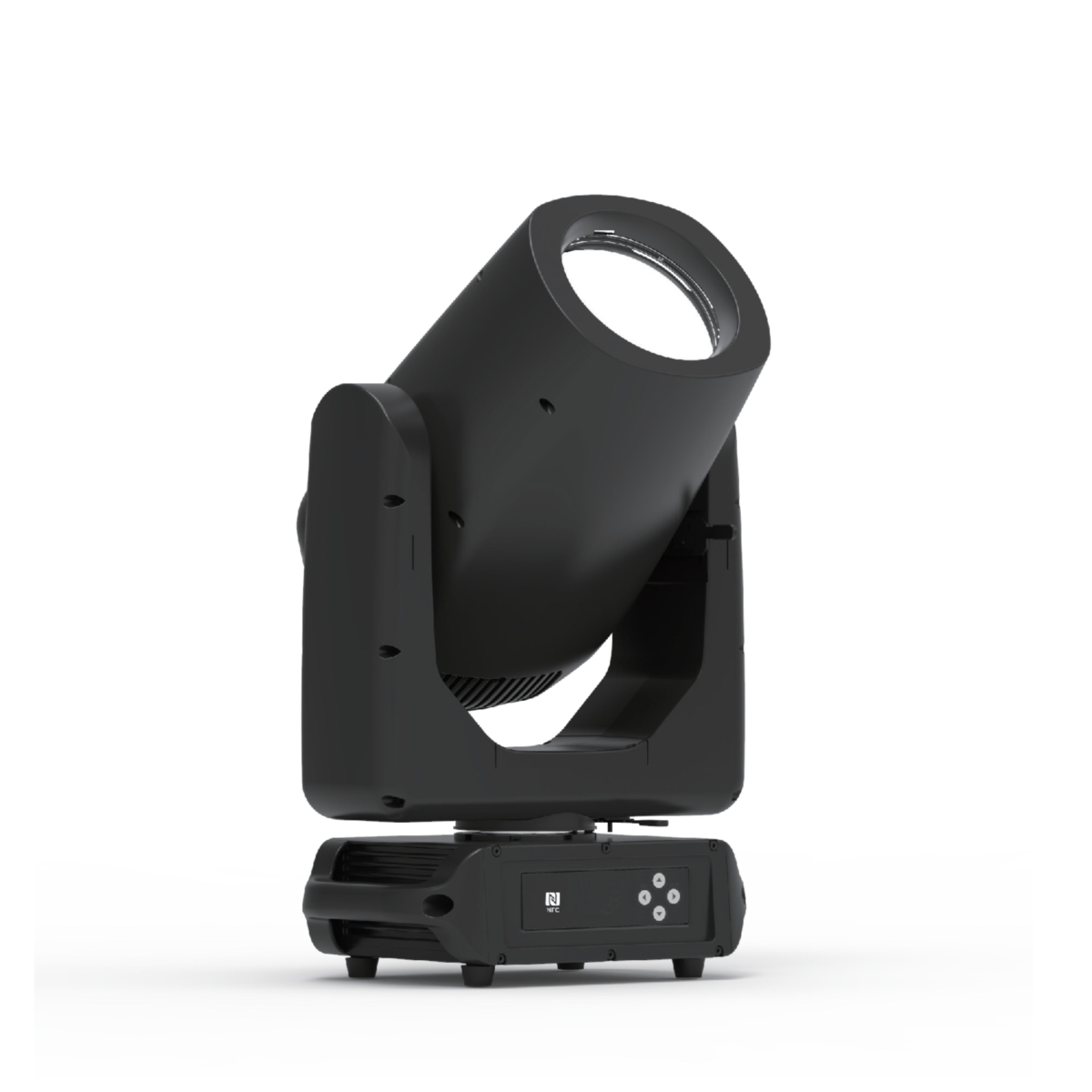

ORBITER BSWF LED PRO 450S -IP66

The ORBITER BSWF-LED PRO 450S-IP66 merges performance and precision in a compact yet powerful form. Engineered with a 450W LED module delivering 13,100 lumens, it supports beam angles from 3° to 52°, perfect for sharp projections and soft washes alike. Framing system with four individually controllable blades and ±90° rotation gives you complete control over shape and coverage. Packed with rotating and static gobos, dual prisms, animation wheel, and high-speed dimming — this fixture is a beast built for concerts, broadcast, and touring needs.

Key Features:

• 450W LED light source, 13,100lm output

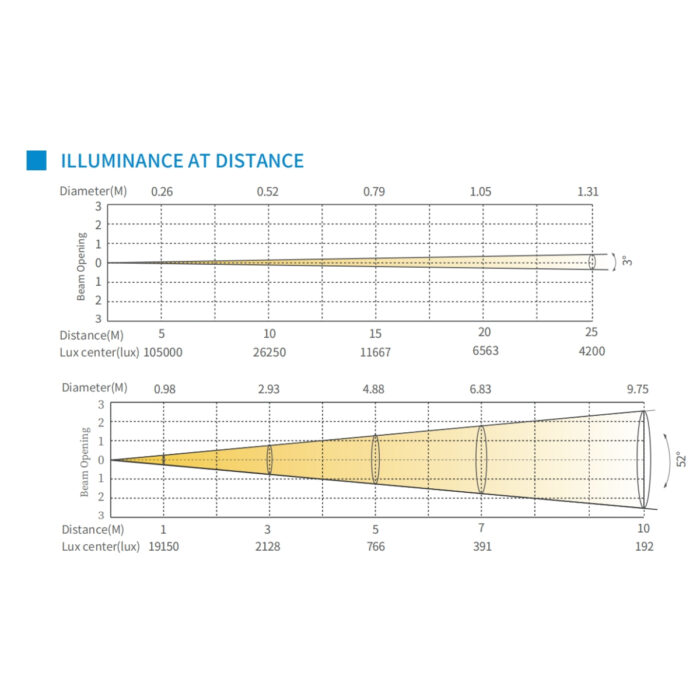

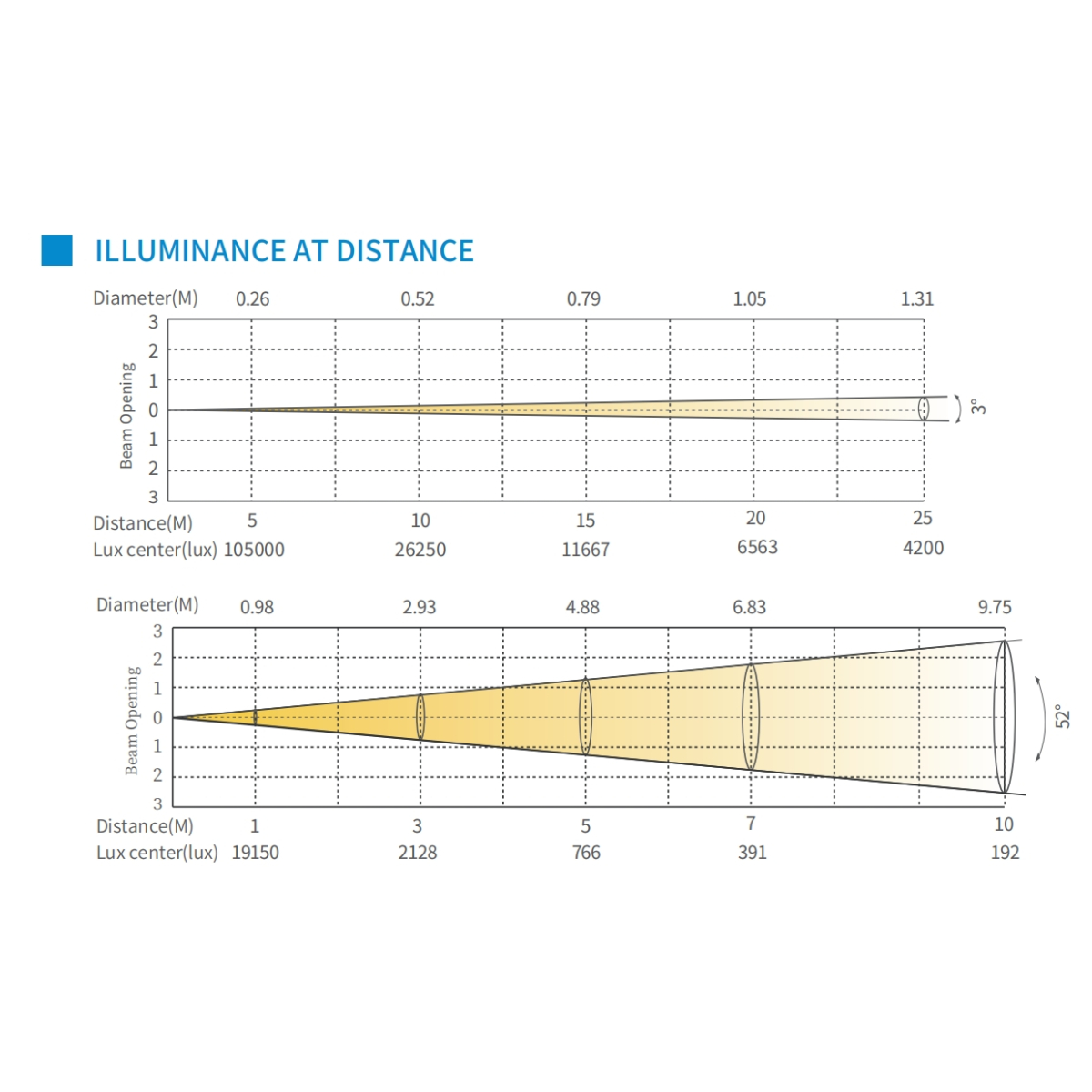

• Beam angle: 3°–52°, with 128,000 lux @5m
• CMY+CTO color mixing for vibrant output
• Dual frost filters: light & heavy diffusion
• 7 rotating gobos + white, gobo flow effects, bi-directional rotation
• 6+1 color wheel for rich mixing
• Animation wheel with speed control
• Dual prisms: 8-facet circular + 6-line linear, both bi-directional
• Framing system with 4 blades, full blackout, ±90° rotation
• Dimming: Opera effect (0–100%, 24-bit)
• Strobe: 0–25Hz flicker-free performance
• Control protocols: DMX512, RDM, W-DMX, NFC
• Channel modes: BASIC (40 CH), STANDARD (33 CH), EXTENDED (55 CH)
• Pan/Tilt: Infinite Pan / 270° Tilt (8–16bit control)
• Air-cooled for reliable operation
• Display: Onboard control with static/custom modes
