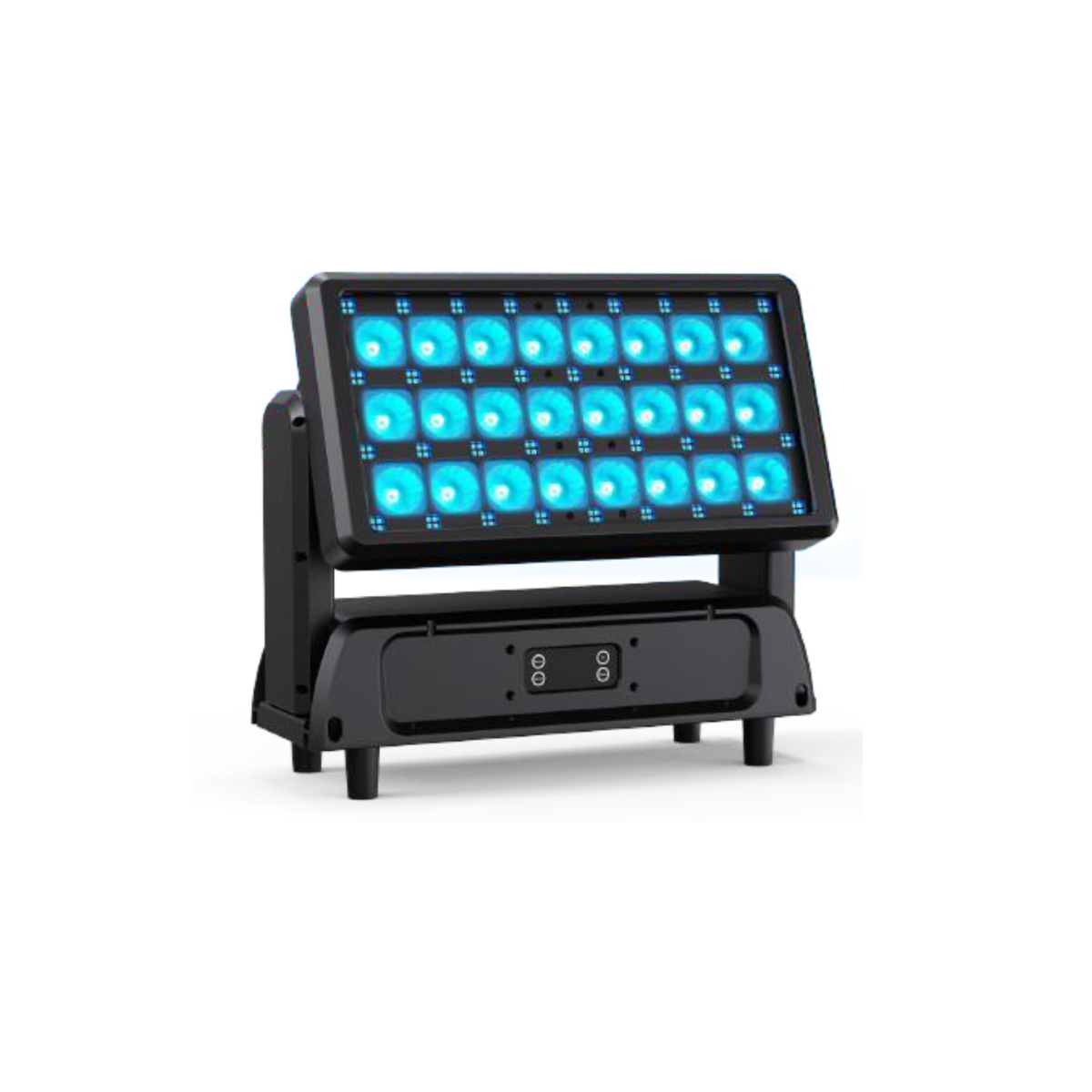

NEO MOTON WASH 800-FX-IP65
IP65-rated RGBL LED wash fixture with dual light sources, smart angle control, zonal effects, and multi-protocol support. Designed for outdoor events, stages, and advanced lighting setups.
Description
The NEO MOTON WASH 800-FX-IP65 by LBT Lumen Bright Technology is a robust and feature-rich lighting solution engineered for high-performance environments. With 24×25W RGBL LEDs at its core and an additional 36×1.2W RGBA Aura LED array, this fixture delivers vibrant color mixing, dynamic pixel effects, and zonal precision. A Smart Glass lens offers beam versatility with angles of 6° and 22°, complemented by full tilt control and advanced DMX channel modes. Waterproof IP65 construction and noiseless forced-air cooling ensure seamless operation in demanding conditions.
Key Features:
- LED Configuration: • 24 × 25W RGBL primary LEDs • 36 × 1.2W RGBA Aura LEDs (4 LEDs grouped per pixel)
- Lens: 6° standard with 22° Smart Glass option
- Tilt movement: 180°, with position feedback
- Effects: CTO presets, macro effects, electronic atomization
- Dimming: 0–100%, 16-bit electronic control
- Cooling: Intelligent temperature-controlled system with overheating protection
- Multi-channel DMX modes: 14 / 25 / 45 / 85 / 253 options
- Display: Full-color 180° reversible LCD menu
Specifications
| Feature | Detail |
|---|---|
| Light Source | RGBL + RGBA Aura LEDs |
| Beam Angles | 6° and 22° (Smart Glass) |
| Tilt Range | 180° with feedback |
| Control Protocols | DMX512, RDM, ArtNet, sACN |
| DMX Channel Modes | 14 / 25 / 45 / 85 / 253 |
| Dimming | 0–100%, 16-bit |
| Effects | CTO presets, macros, atomization |
| Display | Reversible full-color LCD |
| Signal Connectors | Seetronic IP65 XLR 5-Pin / 3-Pin In/Out |
| Power Connectors | Seetronic TRUE1 Power In/Out |
| Voltage | 100–240V AC, 50–60Hz |
| Max Power | 800W |
| Cooling | Noiseless forced air |
| Operating Temp Range | -30°C to +45°C |
| IP Rating | IP65 |

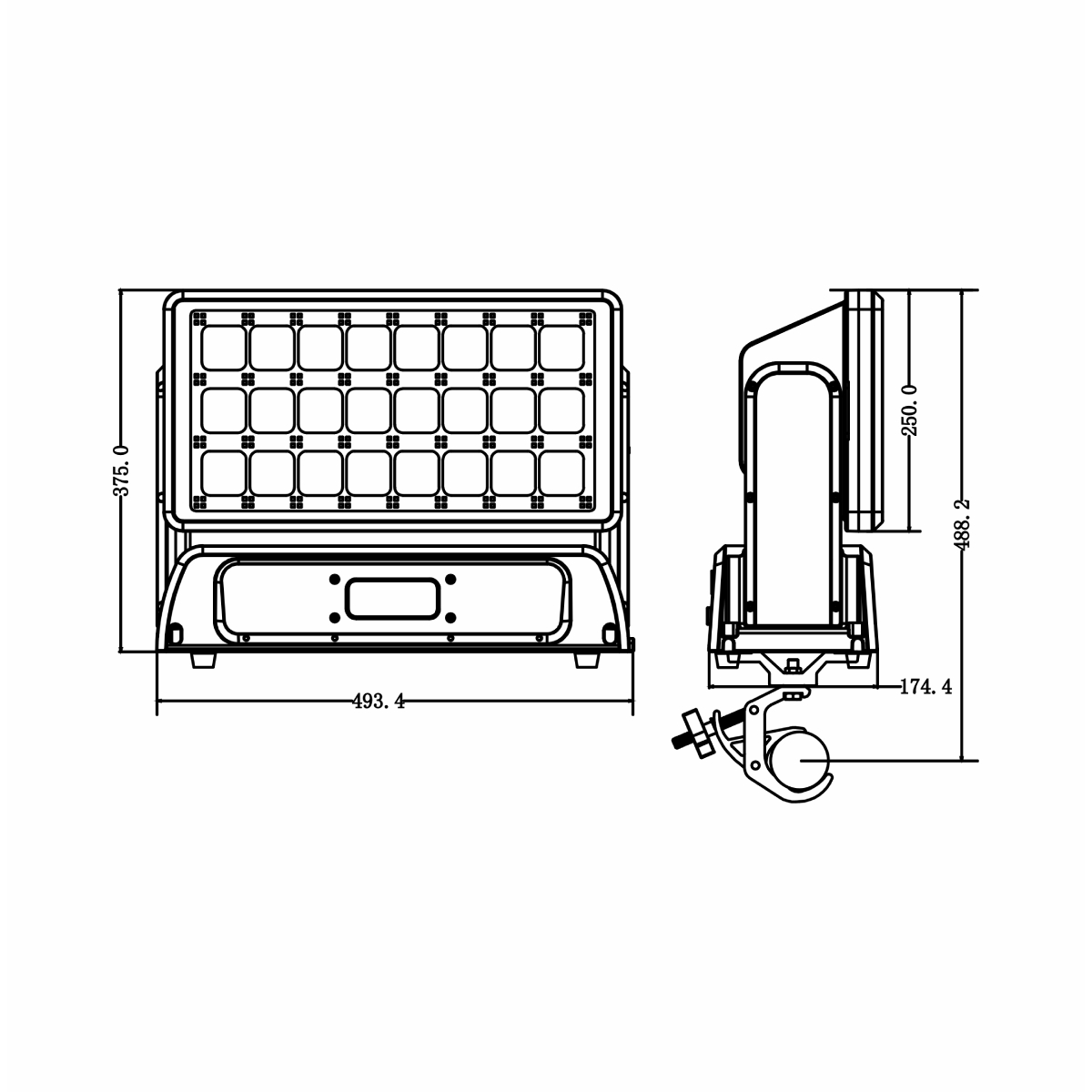

| Dimensions (mm) | 493 × 175 × 400 |
| Weight | 18 kg |
| Certifications | CE |
