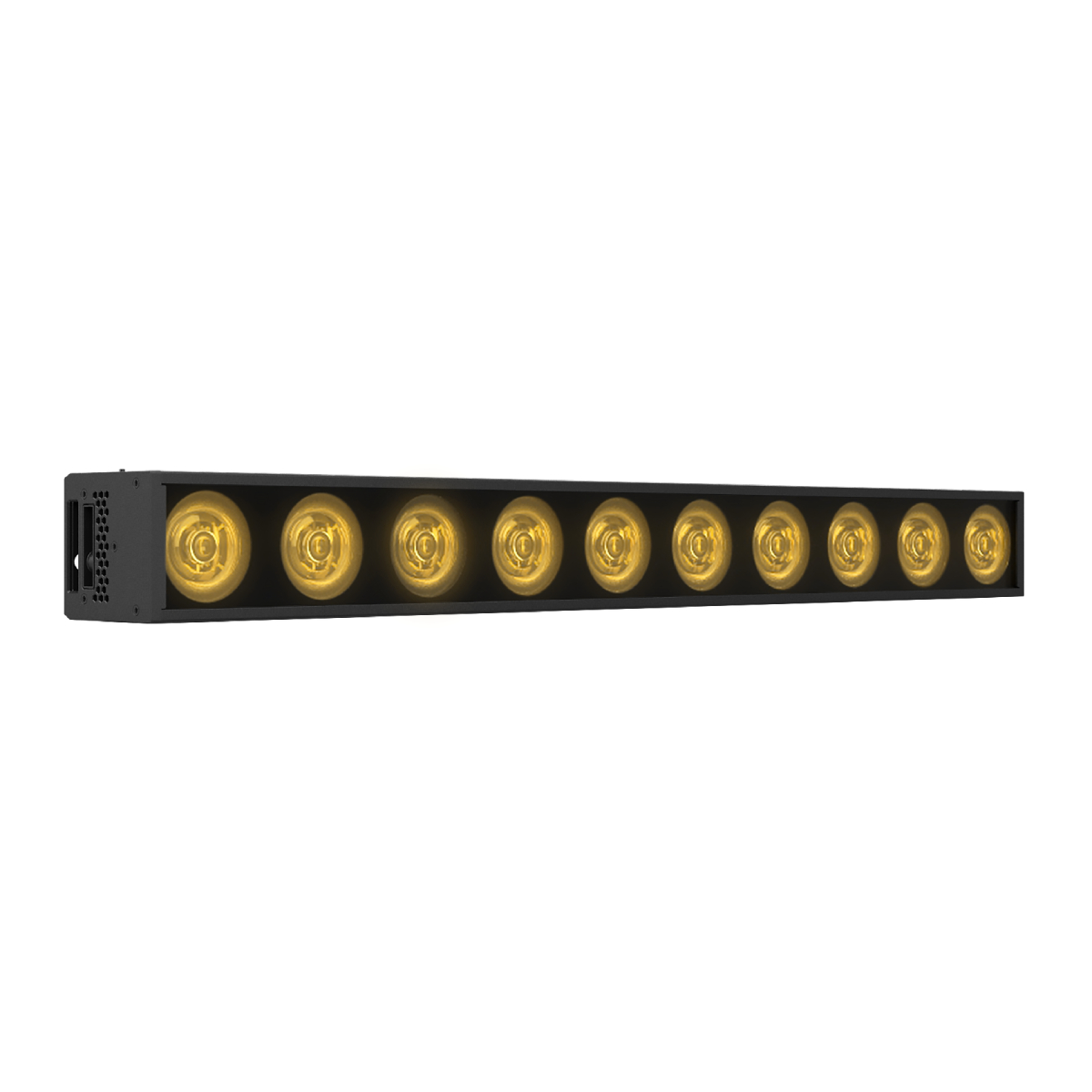

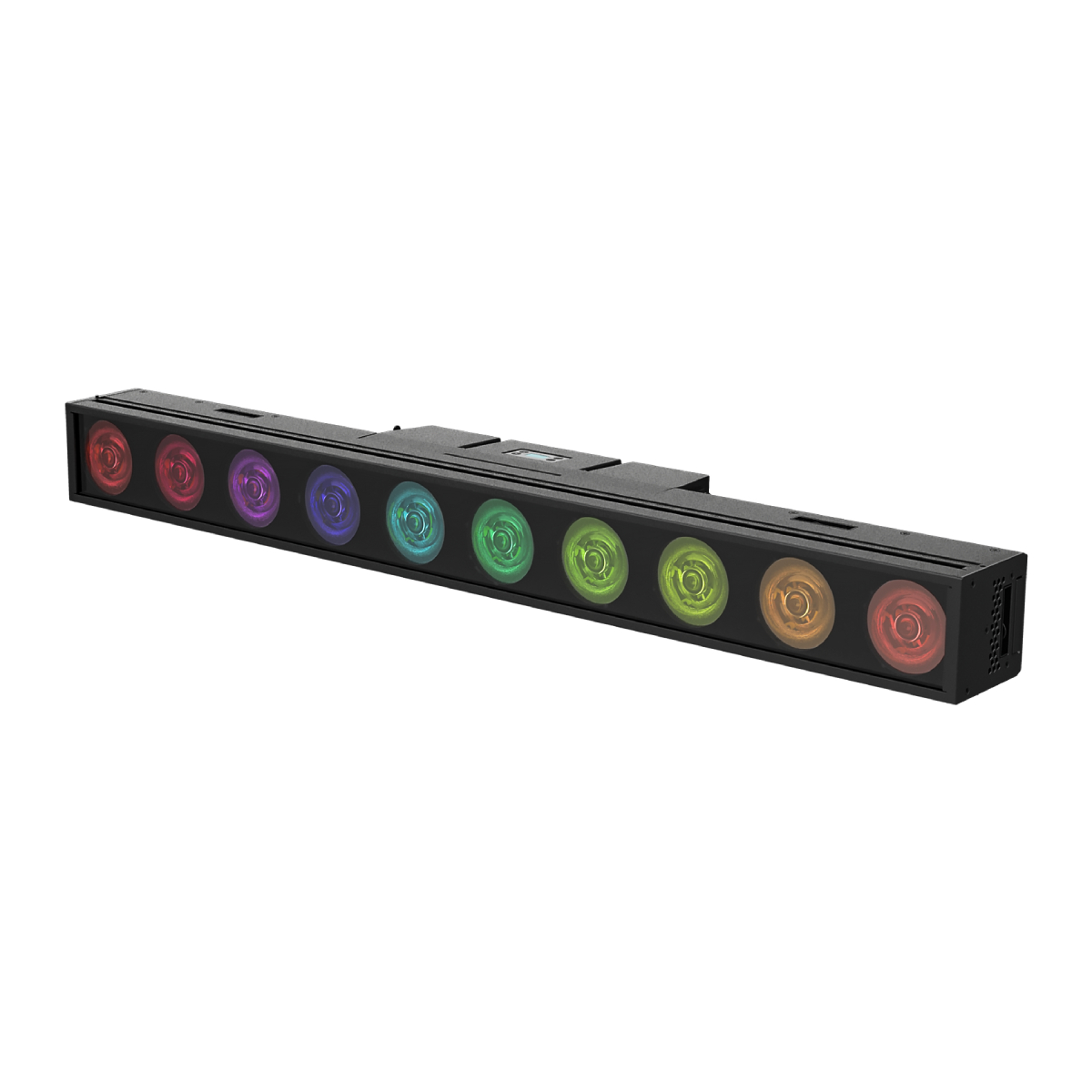

LINO BLINDER-10x50W
Powerful 10×50W RGBAW LED blinder light with Smart Glass frost effects, wide beam angles, and versatile mounting configurations. Ideal for concerts, broadcast, and theatrical effects.
Description
The LINO BLINDER-10x50W by LBT Lumen Bright Technology delivers brilliant stage presence with 10 high-output RGBAW LED engines totaling 26,300 lumens. Designed for dynamic installations, it supports horizontal, vertical, base-stand, and floor mounting with IP20 protection. The patented Smart Glass frost tech ensures elegant diffusion, while the fixture’s 20,000-hour lifespan promises durability. With DMX512, RDM, Art-Net, and sACN control protocols, it’s ready for modern show integration.
Key Features:
- 10 × 50W RGBAW LED engines
- 26,300 lumens output
- Smart Glass Technology for frost diffusion
- Smooth 0–100% dimming range
- Multi-angle beam options: • Beam: 23°–54° (White), 24°–54° (RGBA) • Field: 47°–130°
- OLED display with 4 touch-button control
- Protocols: DMX512, RDM, Art-Net, sACN
- Waterproof power in/out + 5-pin XLR & RJ45 connectors

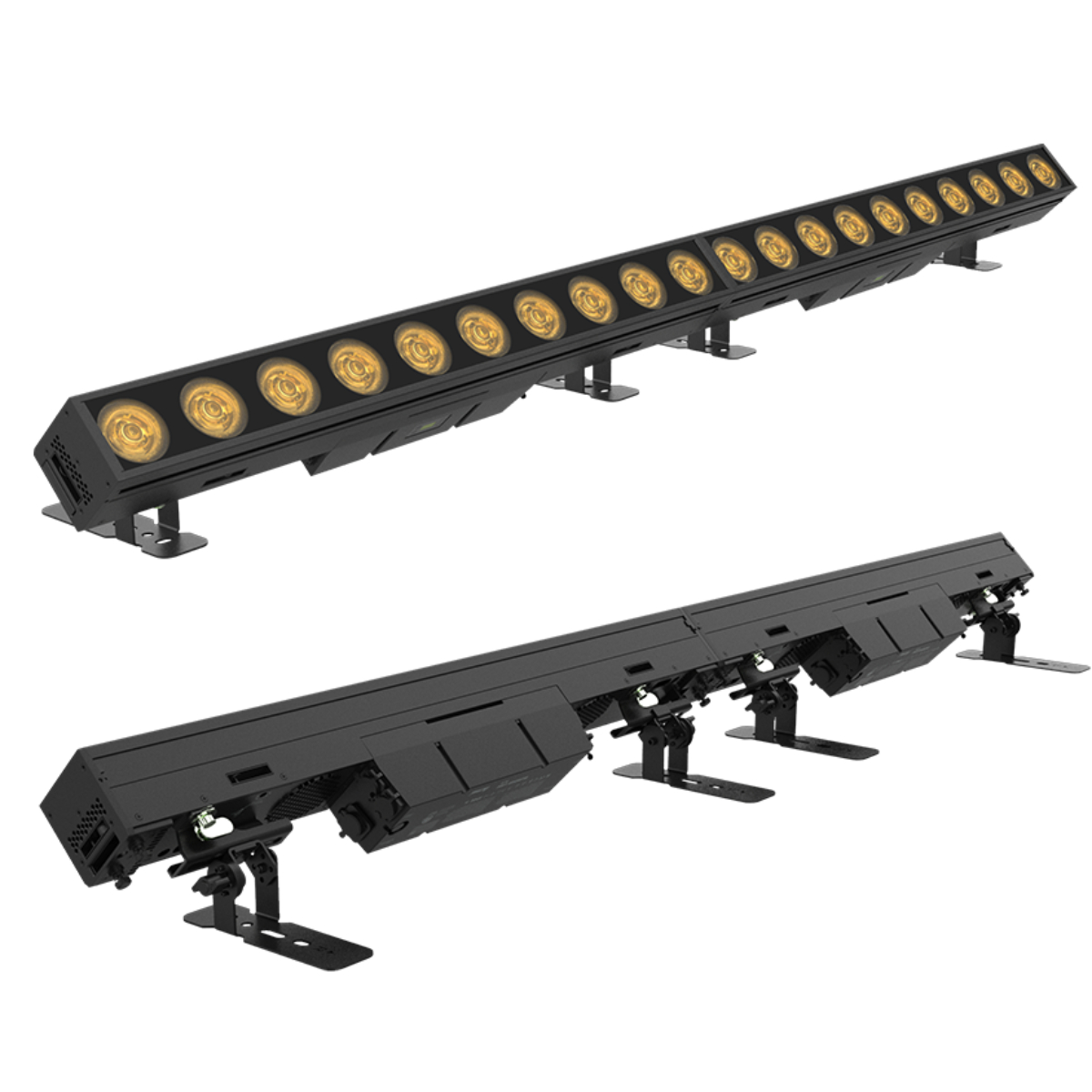

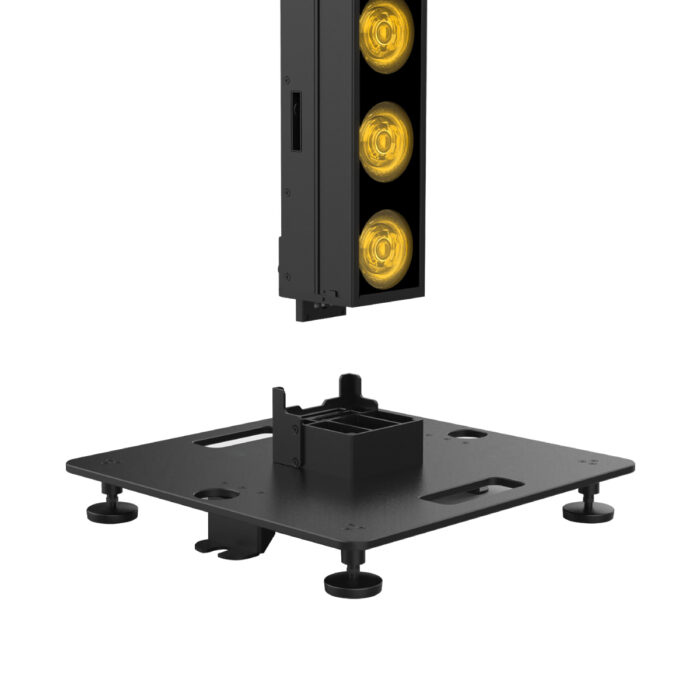

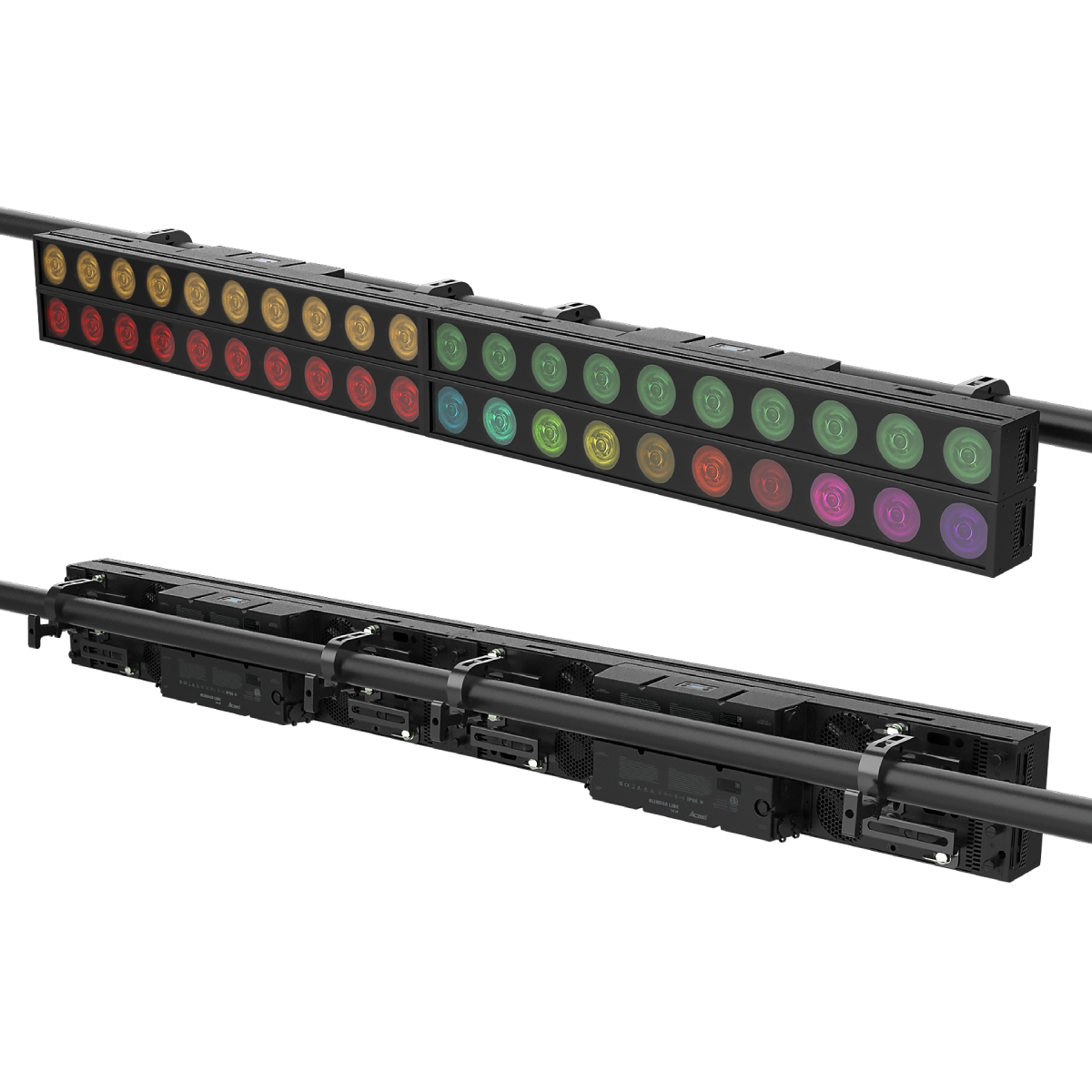

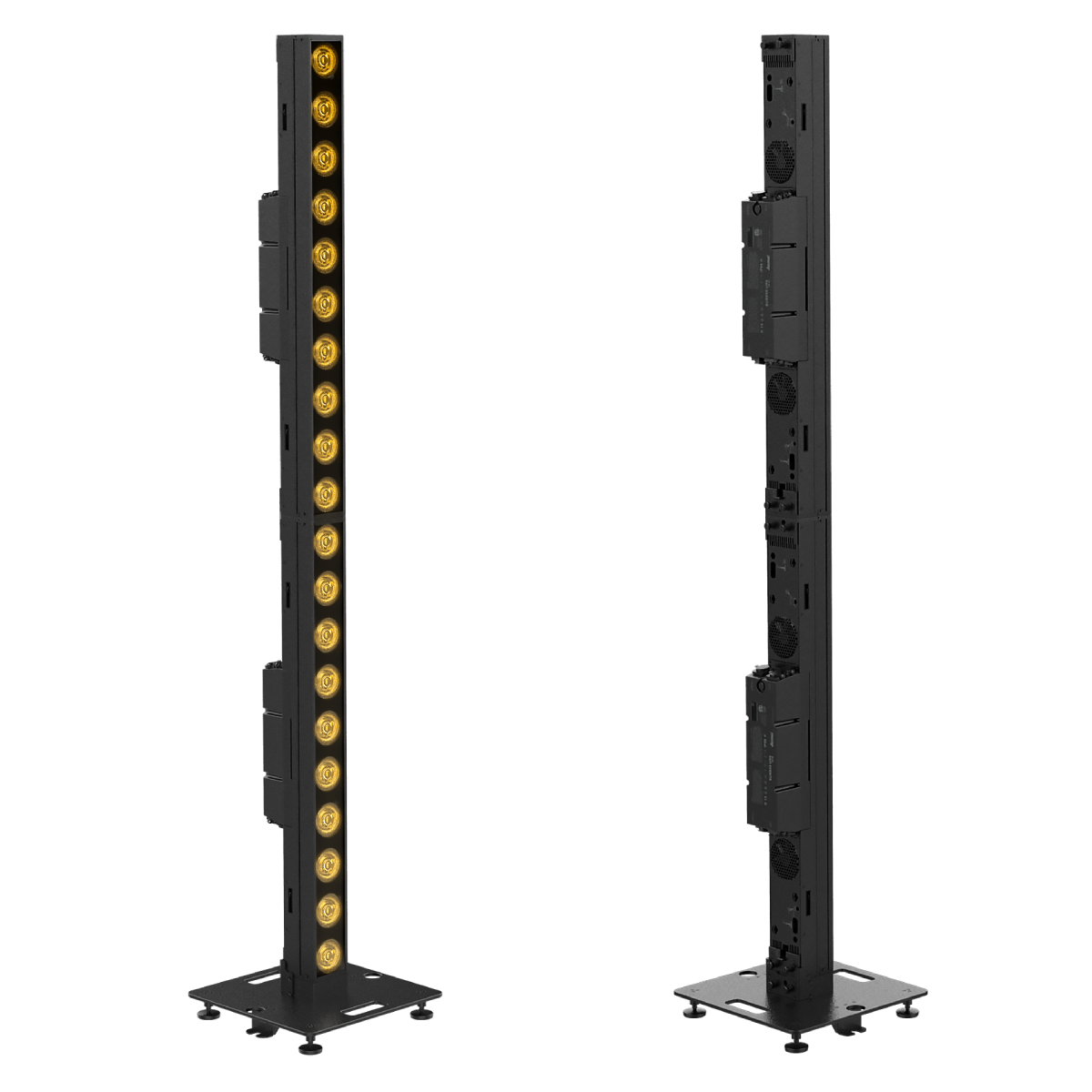

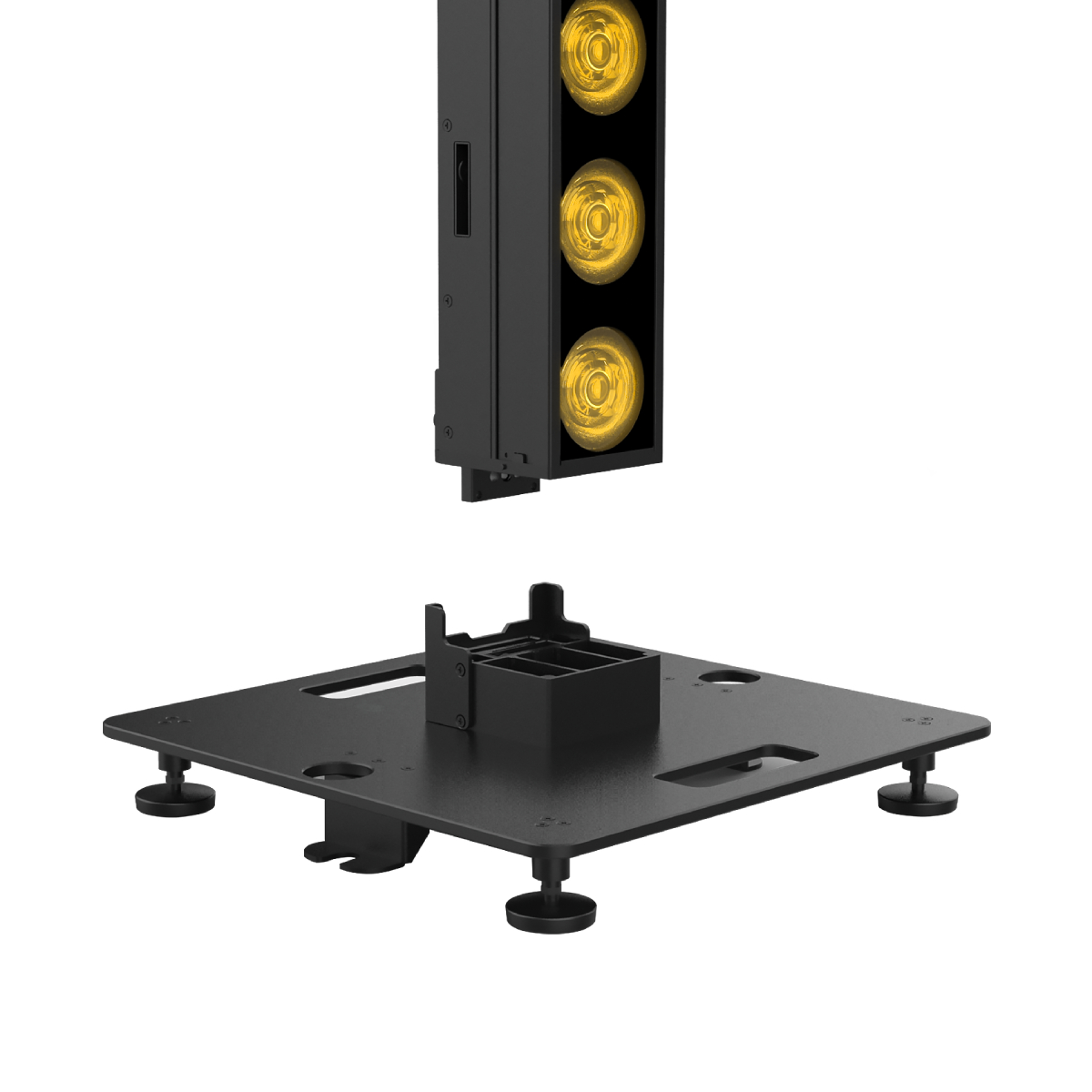

- Mounting options: Horizontal (up to 5 units), Vertical (up to 3 units), Single Base Stand, Floor mount
- Firmware upgrade via DMX link
Specifications
| Feature | Detail |
|---|---|
| Light Source | 10 × 50W RGBAW LEDs |
| Lumen Output | 26,300 lm |
| Beam Angle (W/RGBA) | 23°–54° / 24°–54° |
| Field Angle | 47°–130° |
| Operating Temp Range | -10°C to 40°C |
| Surface Temperature | Max 70°C |
| Protection Rating | IP20 |
| Power Consumption | 600W |
| Voltage Range | 100–240VAC, 50/60Hz |
| Control Protocols | DMX512, RDM, Art-Net, sACN |
| DMX Channels | 14 / 55 modes |
| Display Interface | OLED with 4-button menu |
| Dimensions (Fixture) | 1000 × 103 × 158.5 mm |
| Weight | 13.6 kg |
| Carton Dimensions | 1105 × 285 × 200 mm |
| Certifications | CE, Intertek, UKCA |
