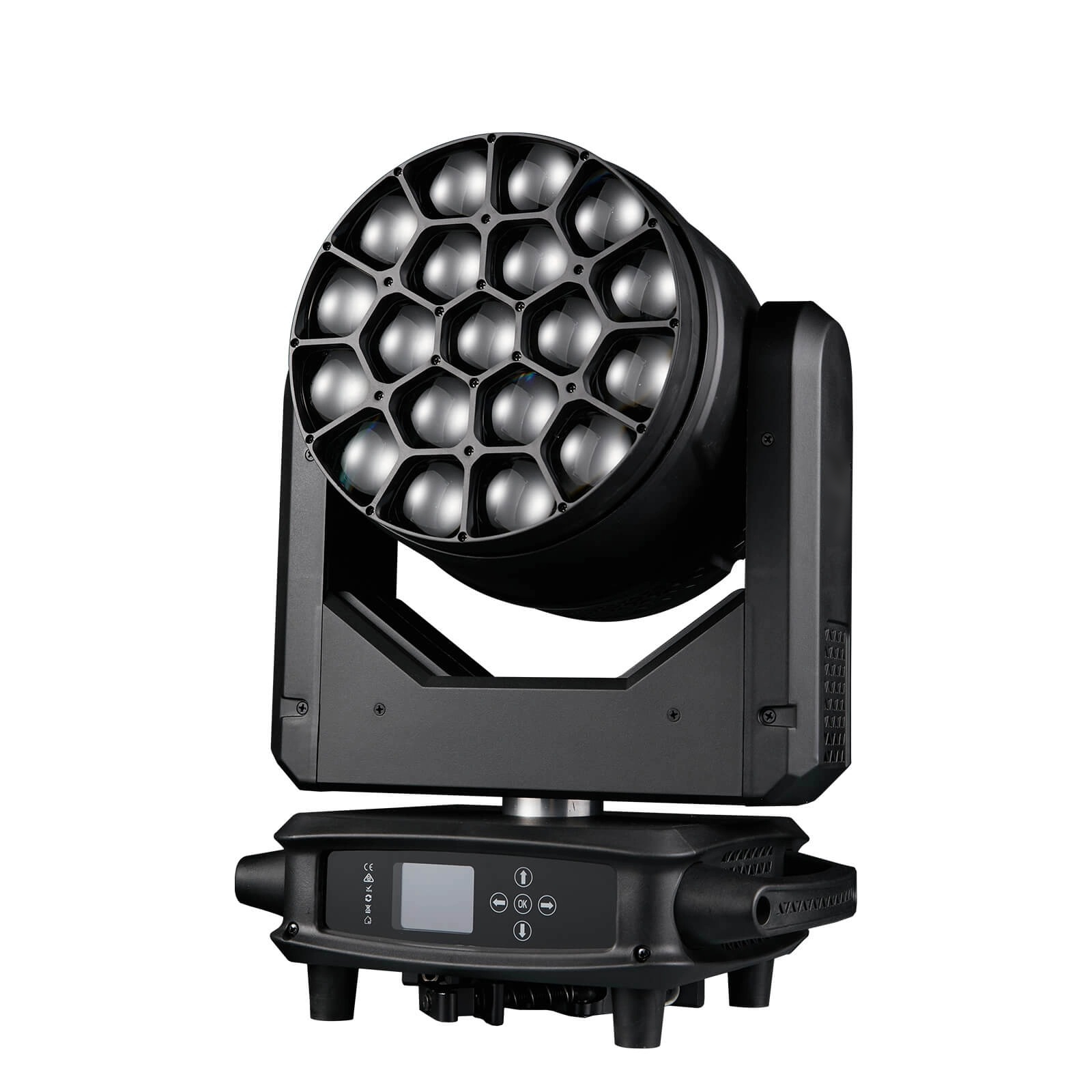

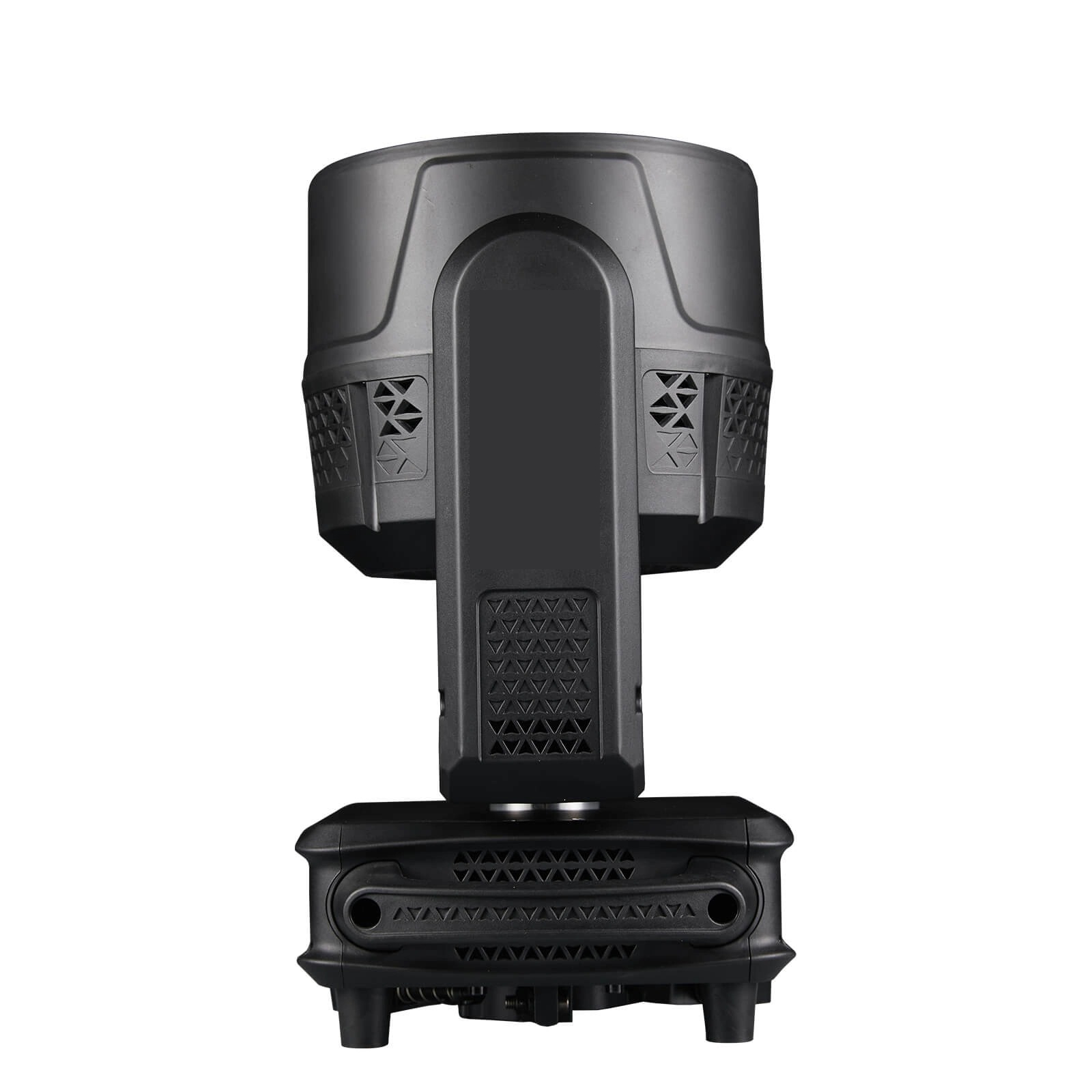

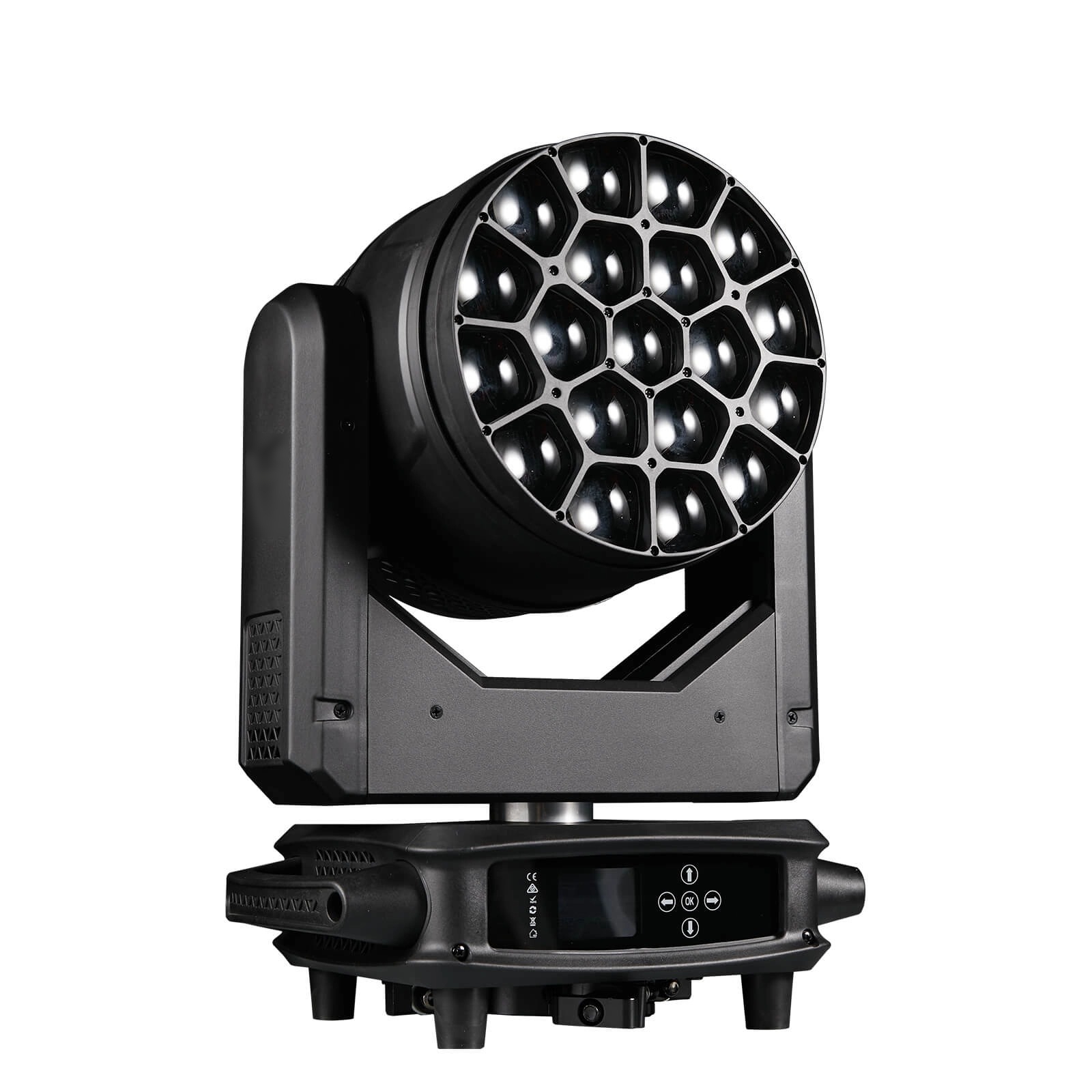

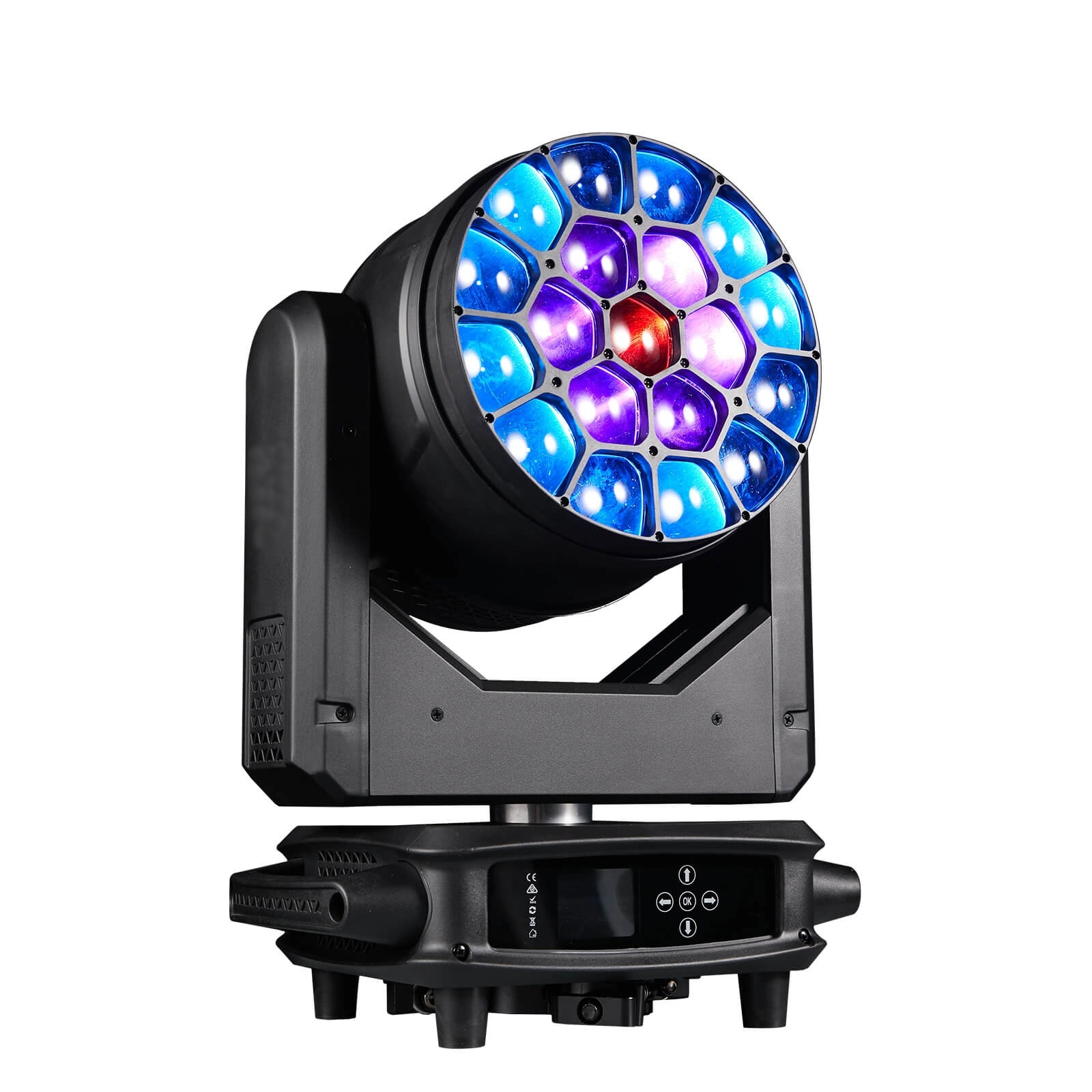

LED 19X40W
- Product: RGBW LED Lighting System.
- Light Source: 19x40W LEDs with adjustable beam angle (4°-60°).
- Modes & Controls: Supports DMX512, RDM, and multiple operational modes.
- Power: High efficiency with 750W consumption and PFC>0.95.
- Special Features: Precision focus, strobe, dimming effects, and durable cooling system.
Description
Optics
- Light Source: 19x40W RGBW 4 IN 1 LED
- Color Temperature: 2500-8000K
- Rendering Index: 80
- Light Source Lifespan: >20000 Hours
- Beam Angle: 4°-60°
Mode
- Operate Mode: DMX512, AUTO, Master/Slave, Voice Control, RDM
- DMX Channel: 21/23/35/78/92/97/99 Ch.
- Display: 2.4 Inch Color Screen, Touch Panel
Power Supply
- Input Voltage: 100-240V, 50/60HZ
- Power Connection: Powercon Power Input/Output
- Signal Connection: 3 Pin DMX Input/Output
- Power Consumption: 750W
- Power Factor: PFC>0.95
- Work Environment: -10°C~45°C
Effects
- X-AXIS: 540°+16 Bit Fine
- Y-AXIS: 270°+16 Bit Fine
- Colour System: RGBW
- Focus: 0-100% Electric Focus
- Strobe: 1-25HZ
- Dimming: 0-100%
Physical Property
- Size: 338x255x446 mm
- Weight: 25.5 Kg.
- Cooling System: Forced Cooling of Fans
- Shell: PA6 Nylon
- Standard: Power Cable x 1, Folding Clamp x 2, Safety Rope x 1
